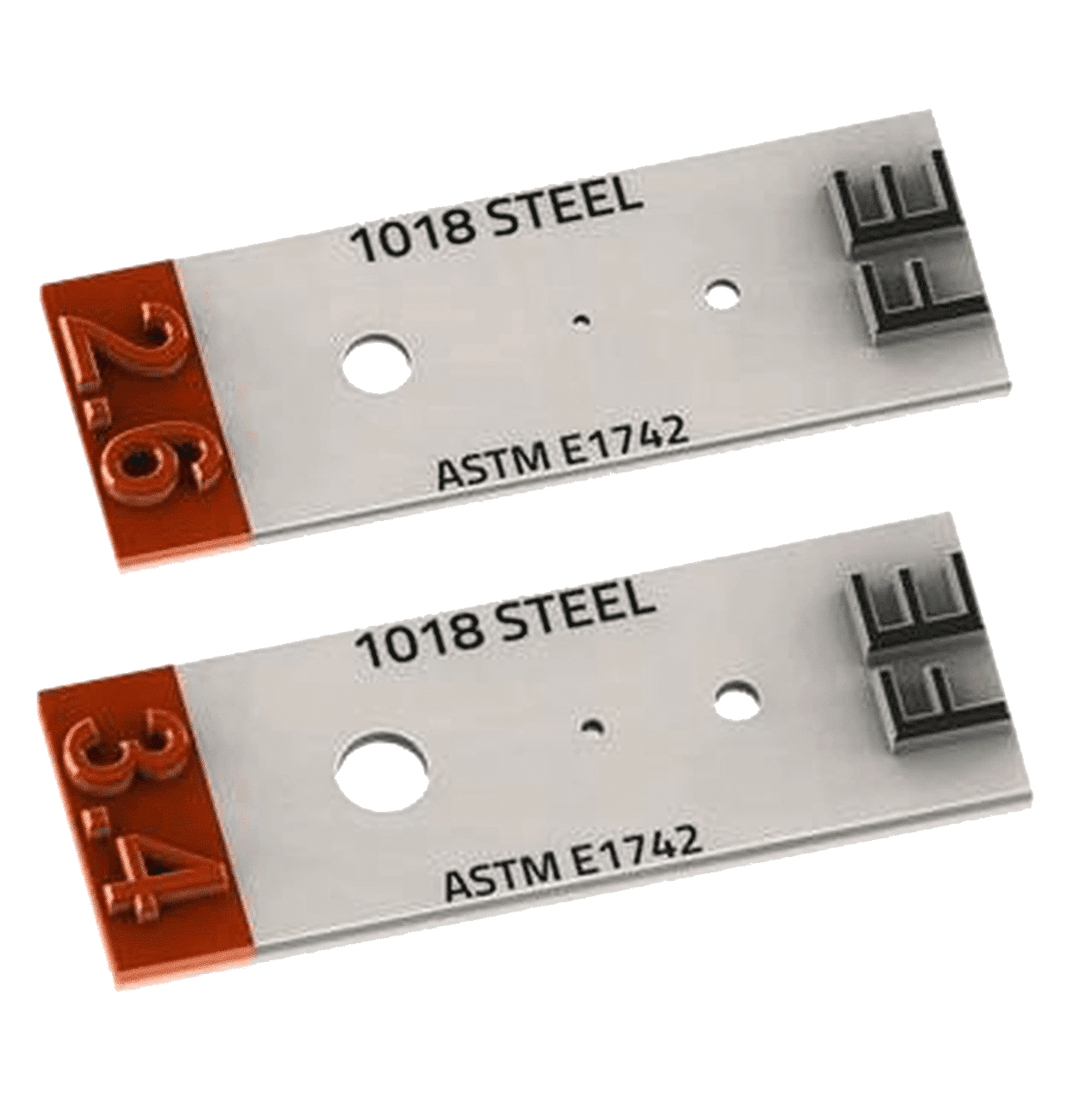

Steel 1018 Plaque Type IQI – ASTM E1742 Penetrameters

ASTM E1742 IQI (Image Quality Indicator) have lead figures identifying the material and thickness (2% of material’s thickness to be radiographed). Small hole diameter = 1x thickness, Medium hole diameter = 2x thickness, Large hole diameter = 4x thickness.

Material - Steel 1018
